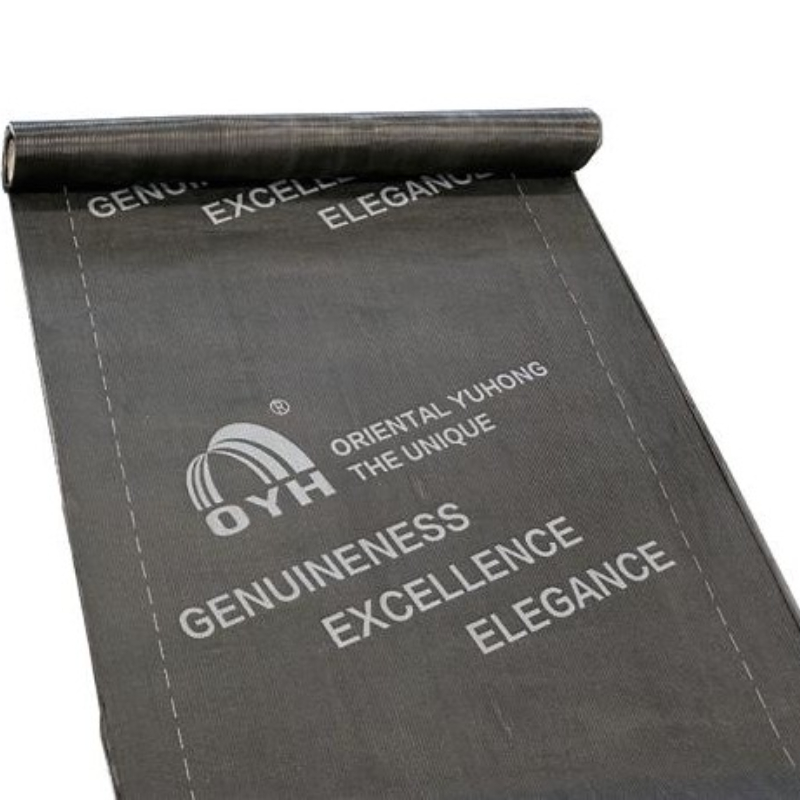

Heavy-Duty Elastomeric SBS Bitumen Membrane
(Heavy-Duty Mesh Specification)
Product Overview
Engineered for ultimate dynamic flexibility and subterranean defense, this premium elastomeric waterproofing membrane is formulated from high-grade asphalt modified with Styrene-Butadiene-Styrene (SBS) rubber. Reinforced with a resilient, non-woven spun-bonded polyester matrix, the system delivers unmatched crack-bridging capabilities, exceptional cold-weather pliability, and absolute watertightness under continuous hydrostatic pressure.
Core Advantages
▪ Extreme Cold-Weather Pliability: The SBS rubber modification ensures the membrane remains incredibly flexible and workable in freezing environments, completely eliminating the risk of embrittlement or micro-cracking common in standard bitumens during harsh winters.
▪ Dynamic Crack-Bridging (Elastomeric Recovery): Possesses extraordinary elongation and elastic memory. It effortlessly accommodates severe structural movement, thermal cycling, and foundation settlement without compromising the waterproof barrier.
▪ Maximum Hydrostatic Resistance: Forms an impenetrable, monolithic shield specifically optimized
for continuous immersion. It provides elite protection for deep subterranean basements and foundations exposed to aggressive, permanent groundwater pressure.
▪ Heavy-Duty Puncture Defense: The high-tenacity polyester reinforcement provides massive tear strength and impact resistance, safeguarding the membrane against heavy backfill operations and structural stresses.
Engineered Applications
▪ Deep foundation slabs, retaining walls, and blind-side waterproofing under permanent water tables.
▪ High-performance flat roofs in cold-climate regions (under protective ballast or green roof assemblies).
▪ Heavy-duty plaza decks, podiums, and elevated concrete structures prone to intense vibration or deflection.
▪ Infrastructure projects requiring extreme low-temperature application and dynamic movement accommodation.
System Integration: The Dynamic Subterranean & Cold-Climate Defense Matrix
To guarantee absolute monolithic integrity under continuous hydrostatic pressure and extreme freeze-thaw cycles, the heavy-duty SBS membrane must be deployed as the core of a synchronized foundation envelope. Forcing a thick, elastomeric sheet into unprepared subterranean joints is the leading cause of deep-foundation failure. Eliminate structural void vulnerabilities, secure termination edges, and ensure absolute warranty compliance by integrating these engineered components:
Structural Void Elimination & Cant Strip Fortification:
Must pair with: Industrial Ultra-Rapid Setting Hydraulic Cement
Why it’s critical: Heavy-duty SBS membranes cannot be bent into sharp 90-degree internal corners without creating hollow voids behind the sheet—these voids will eventually be crushed and ruptured by massive hydrostatic groundwater pressure. This ultra-rapid hydraulic matrix is mandatory to construct 45-degree cant strips (fillets) at all wall-to-floor junctions and to permanently seal pipe penetrations prior to membrane installation, providing a crush-proof rigid foundation for the flexible sheet.
Sub-Zero Capillary Anchoring & Conditioning:
Must pair with: Professional RTU High-Penetration Bitumen Primer
Why it’s critical: In subterranean or cold-climate applications, concrete substrates exhibit microscopic frost or persistent dampness, severely compromising direct adhesion. This factory-calibrated, ultra-low viscosity primer acts as a chemical “ice-breaker.” It penetrates deeply into the concrete capillary network, locking in a permanent, high-tenacity bitumen-to-bitumen molecular anchor that prevents the heavy sheet from delaminating during intense thermal contractions.
Sub-Grade Termination Bar Encapsulation:
Must pair with: Architectural High-Performance PU Sealant
Why it’s critical: At the top edge of retaining walls and blind-side blinders, dynamic soil settlement and backfill friction will ruthlessly tear at the membrane’s termination line. Mechanical fastening (termination bars) is insufficient against water tracking. This Class 25 F dynamic polyurethane sealant must be heavily extruded over all termination edges, providing an elastomeric, zero-slump chemical lock that moves symmetrically with the SBS sheet under dynamic earth loads.
