Architectural Elastomeric Exterior Shield
(Solar-Reflective & High-Build Weather-Barrier Specification)
Product Overview
The engineered solution for total exterior envelope protection. This single-component, water-based elastomeric membrane is formulated with high-purity cross-linked polymers and advanced light-stabilizing pigments. Designed for exposed structural surfaces, it creates a seamless, breathable, and UV-impenetrable shield that actively reflects solar radiation while maintaining supreme crack-bridging flexibility across concrete and metallic substrates.
Core Advantages
▪ High-SRI “Cool Roof” Efficiency: Fortified with solar-reflective technology to achieve a high Solar Reflectance Index (SRI). By significantly reducing heat absorption on exposed roofs and facades,
the system actively lowers building cooling loads and mitigates the urban heat island effect,
contributing to global green building certifications.
▪ Extreme Dynamic Crack-Bridging: Features superior elastomeric memory that facilitates over 400% elongation (depending on specification). This allows the membrane to function as a “living skin,” effortlessly absorbing the intense thermal expansion and contraction cycles common in large-span
metal roofs and concrete facades.
▪ Hybrid Substrate Adaptive Adhesion: Optimized for seamless integration with both mineral surfaces (concrete, masonry) and metallic assemblies (color-coated steel, aluminum). The advanced dispersion technology ensures a permanent chemical bond that resists wind-driven rain and airborne pollutants.
▪ High-Productivity, Hazard-Free Deployment: A cold-applied, ultra-low VOC formulation that eliminates the risks of open flames or noxious odors. Its superior rheology allows for high-build application via

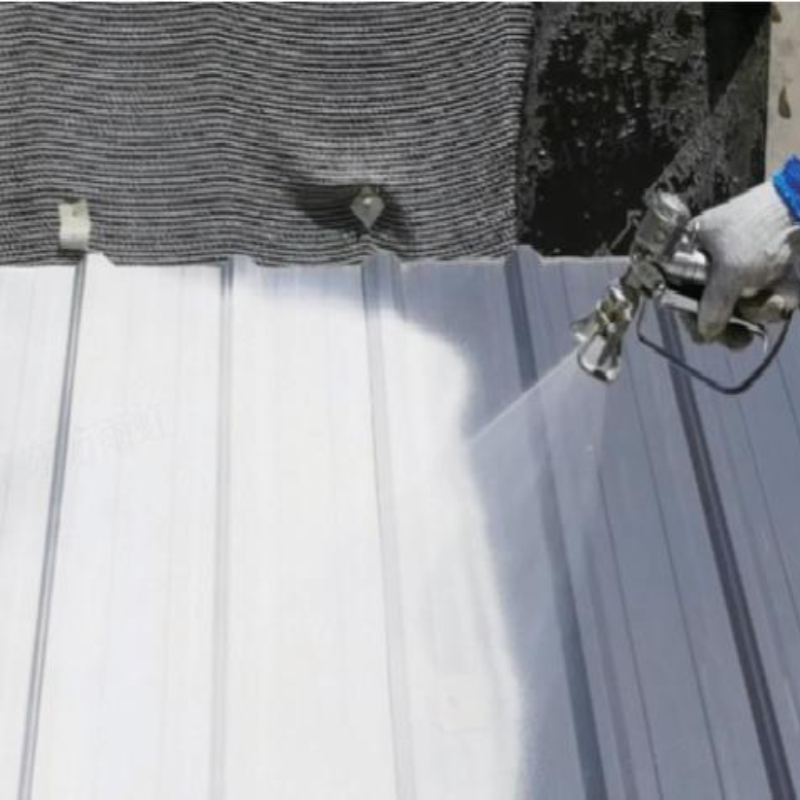

airless spray or roller, ensuring consistent thickness and professional architectural aesthetics in high-visibility urban zones.
Engineered Applications
▪ Solar-reflective restoration for commercial flat roofs, metal roof decks, and box gutters.
▪ High-performance protective finish for residential and industrial external wall systems.
▪ Decorative and functional waterproofing for balconies, terraces, and exposed structural features.
▪ Professional-grade refurbishment of aging building envelopes requiring UV-stable, crack-resistant finishes.
System Integration: The Exposed Weather-Barrier & Solar-Shield Matrix
To fully exploit the high-SRI thermal efficiency and the 400% elongation of an Architectural Elastomeric Exterior Shield, you must eliminate the primary failure mechanisms of exposed building envelopes: solar-induced concrete out-gassing, metal lap-seam fatigue, and flash-rusting. An elastomeric liquid provides a seamless architectural skin, but when subjected to direct solar radiation and wind-driven rain, it will blister, peel, or tear if the underlying substrate transitions are not mechanically reinforced. Secure your exterior envelope warranty by integrating these mandatory configuration components:
Concrete Out-Gassing & Solar Blister Prevention:
Must pair with: Elite Vapor-Lock & Pore-Sealing Epoxy Matrix
Why it’s critical: Exterior concrete walls and roof decks actively trap moisture and air within their pore structures. When intense solar radiation strikes the high-SRI coating, the temperature differential creates severe vapor drive, causing trapped air to violently expand and blow hundreds of pinholes or blisters through an unprimed water-based polymer film. This deep-penetrating epoxy matrix is mandatory to permanently seal the concrete capillary network, providing a rigid, out-gas-free foundation that ensures a flawless, bubble-free elastomeric shield.
Facade Joints & Metal Lap-Seam Structural Reinforcement:
Must pair with: High-Tenacity Elastomeric Flash-Bond Matrix
Why it’s critical: Exterior building surfaces behave like giant thermal engines, undergoing violent expansion and contraction cycles. Although this liquid shield offers >400% elongation, a standard liquid film naturally thins out over corrugated metal lap seams, facade expansion joints, and parapet flashings, leading to fatigue tearing under repetitive shear stress. This cold-applied, non-woven butyl tape must be centered over all structural seams and transitions to act as a high-tensile structural “skeleton” that absorbs kinetic energy while its fleece surface permanently locks into the elastomeric coating.
Dynamic Penetration & Mechanical Fastener Isolation:
Must pair with: Architectural High-Performance PU Sealant
Why it’s critical: Exterior walls and roofscapes are riddled with structural penetrations, mechanical fasteners, and drainage gutters that transfer intense vibrational and wind-shear stress directly to the coating interface. Coating directly over moving joints or exposed screw heads invites localized adhesion failure. This Class 25 F dynamic polyurethane sealant must be heavily extruded around all pipe penetrations and joint perimeters prior to coating, creating an independent, high-mass elastomeric gasket that completely isolates structural movement from the exterior architectural skin.
